1、Applications
Based on Windows system, provide the DLL library file for customer for 2 times development, suitable for customers all kinds of CNC system.

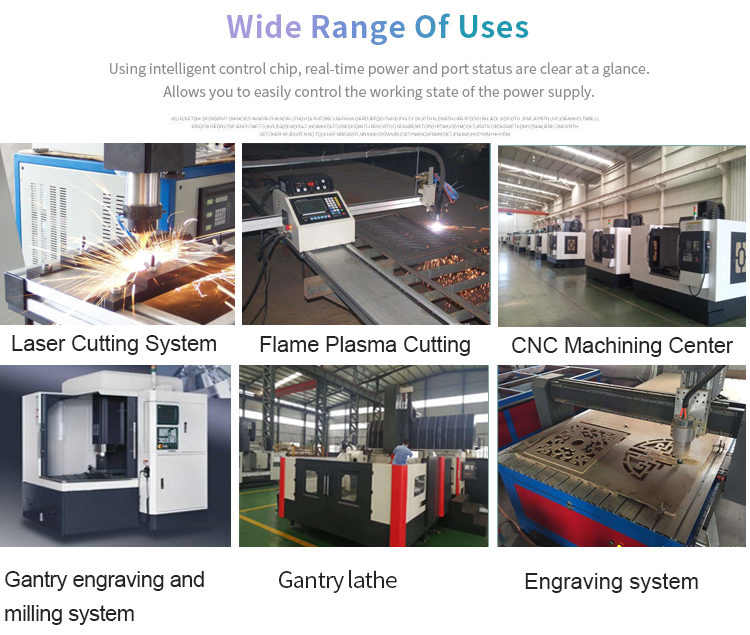

Suitable for all kinds of CNC and Engraving machine System, secondary development by user. We will offer user Windows, DLL Library and sample documents，Define function freely, Smart and convenient.Offer OEM and ODM service for our customer.
Features:

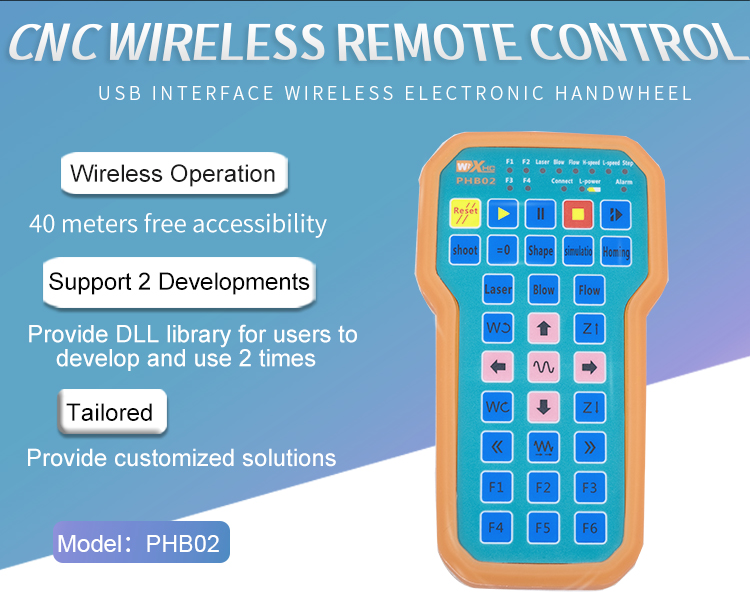

1.programmable wireless CNC remote controller
2.40m barrier free remote control

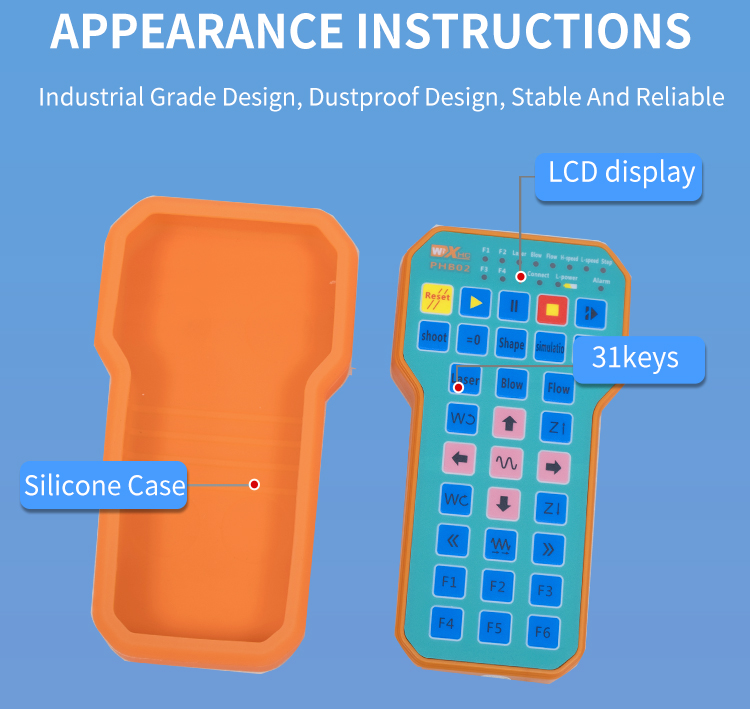

3.Anti falling protective sleeve
4.LCD display
5.Offer 100PPR wireless Electronic handwheel function

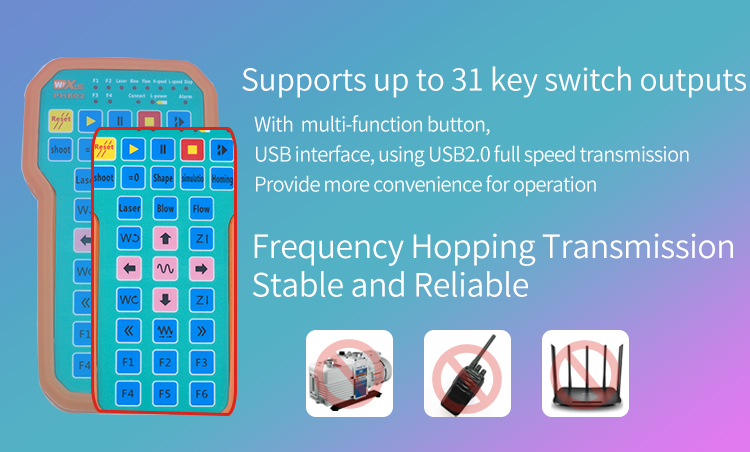

6.Offer 2pcs band switch Output，for Axis and Speed selection
(1).jpg)
.jpg)

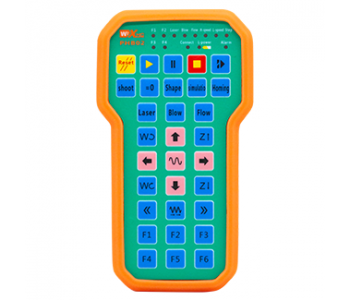

PHB02 has 2 series：
1. PHB02：The USB interface.
2. PHB02-RS:provide RS232 communication interface.
Based on Windows system, provide the DLL library file for customer for 2 times development, suitable for customers all kinds of CNC system.
2、Application circut
(1).jpg)
3、Product overview and Key feature
.jpg)
.jpg)
4、General Characteristics
| Parameter | Description |
| Frequency bands | ISM，433MHZ |
| Supply voltae | 2 AA batteries |
| Wireless transmission distance | 40 meter |
| Function Key | 31 Keys |
| RF TX power | 10DB |
| Receiver sensitivity | -98DB |
| LCD | 128*68 Dot LCD with background |
| Material | ABS、PC、aluminium |
5、Attachments
| PHB02 Wireless device | 1 piece |
| USB receiver | 1 piece |
| Driver disk | 1 disk |
| Guarantee CARD | 1 paper |
| Package box size | 213*160*55mm |
| Weight | 0.4KG |
More detail introduction,please walk to download center
