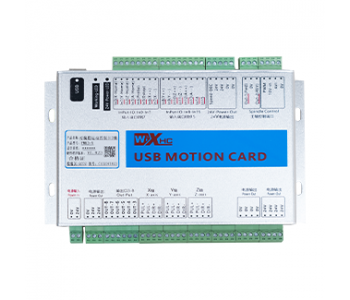

1、Applications
PMKX-V has 3 series：
1. PMK3-V：3 axis motion card.
2. PMK4-V：4 axis motion card.
3. PMK6-V：6 axis motion card.
works with all windows platform

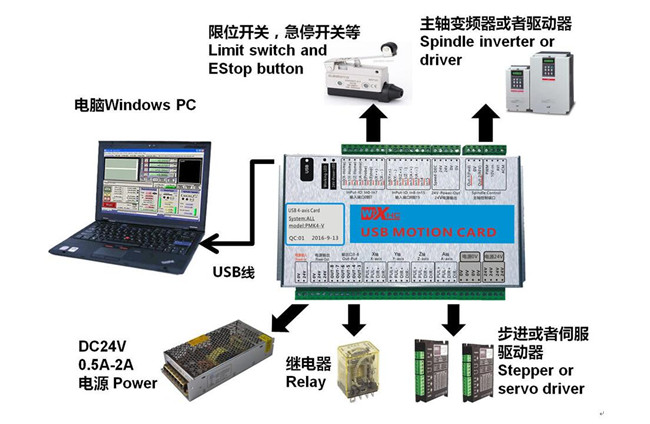

2、Product overview
3、Control card DLL library description
Frontier: A block diagram of the control system
Control system, through the DLL library files, and control card communication
Control system, through the DLL library files, and control card to communicate.
Control system, mainly for a variety of motion control algorithm calculation (straight line, arc, irregular curve interpolation), G code analysis, small line forward algorithm.
XHC-MKX.DLL：By the control card to provide the DLL, the control system, by calling XHC-MKX.DLL library function, you can download data to the control card. The system initiates data from the control card.
4、Key feature
1.Using USB cable and computer communication, USB communication standard: USB2.0
2.The control card supports 6-axis linkage
3.Control card output pulse uniform, the maximum pulse frequency 2MHZ
4.The control card supports 16 input IO ports, all input ports, active low
5.The control card supports eight output ports, the output port open output.
6.The control card supports the inverter interface, supports analog 0-10V output, or 0-5V output.
7.The control card supports PWM output, PWM frequency 2KHZ
8.EMI design, stable and reliable, to avoid the work of the inverter, affecting USB communication instability.
9.Control card support soft limit, hard limit, the origin switch, support the knife signal, emergency stop signal control.
10.The control card provides WINDOWS standard DLL library function, provides API program interface, provides customers to develop 2 times.
5、Parameter
| Parameter |
Description |
|
Axis drive control：
|
Isolated oc output |
Voltage:5V,maximum load :20A |
| type |
STEP/DIR |
| Maximum Step frequency |
2000KHZ |
| Number of support axis |
PMK3-V：3 axis
PMK4-V：4 axis
PMK6-V：6 axis |
| Spindle control |
Analog output voltage |
0-10V |
| Digital PWM output |
5V,1KHZ,fill factor:0-100% |
| STEP/DIR |
Minimum frequncy：15Hz
Maximum frequncy：4KHz |
| 8 digital output |
Maxmimum load of output line |
50mA |
| Maxmimum voltage on out line |
25V |
| 16 digital input |
Maxmimum load of input line |
5mA |
| maximum voltage on input line |
25V |
| PC connection |
Standard USB2.0 |
6、Attachments
| PMKX-V motion card |
1 piece
|
| Use wire |
1 piece |
| PMKX CD |
1 piece |
| Package box size |
275*144*42mm |
| weigtht |
0.7KG |
More detail introduction,please walk to download center
