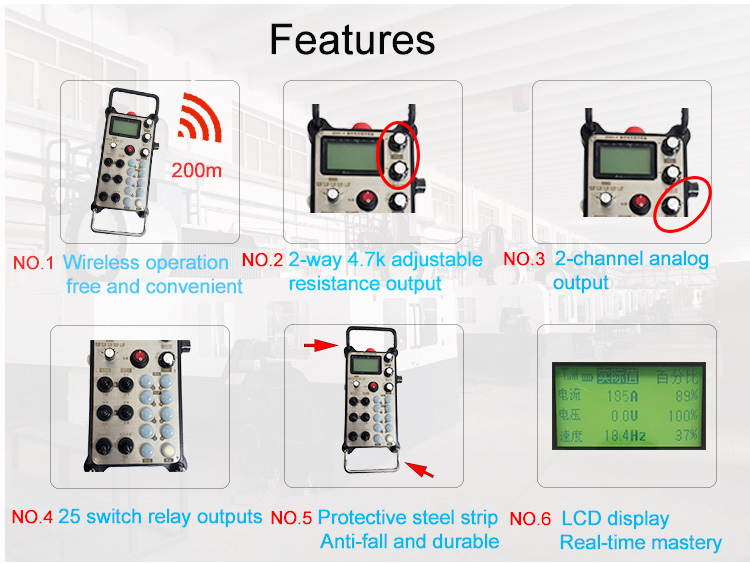

1 .Auto Frequency Hopping When Noise.
Frequency band:433Mhz,ISM ,the output power up to10DB,High receiver sensitivity -98DB.
32 hopping channels,the channel frequency gap is 1Mhz.
the transmission is encrypted, auto build communication network and pair. auto hopping when noise.
32 sets of wireless MPG could be used at the same time in one room.
2 stable and reliable performance
Industrial grade design, dust, oil proof design.
With industrial grade design, dust, oil proof design.
3 Low power feature
the life is longer than 3 months with 3 AA batteries

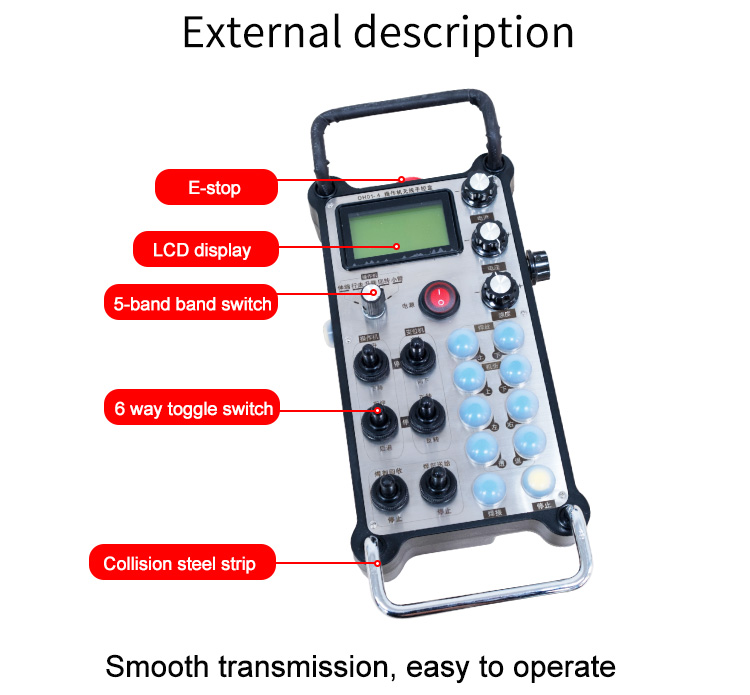

4 LCD display
The lcd display data with background light.Display the current work state of the cnc system.
Parameter | Description |
Frequency bands/td> | ISM,433MHZ |
Supply voltage | 3 AA batteries |
Wireless transmission distance | 40 meter |
Function Key | 11 key |
RF TX power | 10DB |
Receiver sensitivity | -98DB |
Material | ABS、PC、aluminium |

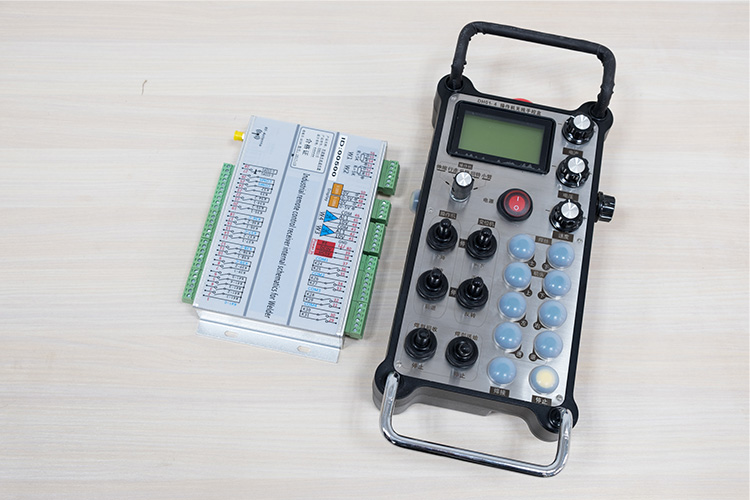

DHO1 Wireless device | 1piece |
Wireless receiver | 1piece |
receiver antenna | 1piece |
isolated power | 1个 |
Package box size | 390*345*83mm |
Weight | 3kg |
More detail introduction,please walk to download center
