.jpg)

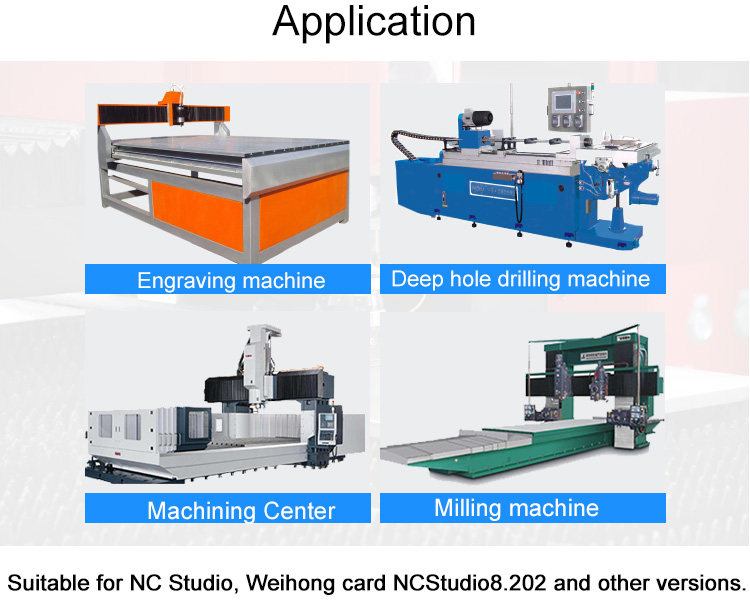

application on ncstudio cnc system.such as ncsutido8.202 etc.
.jpg)
.jpg)

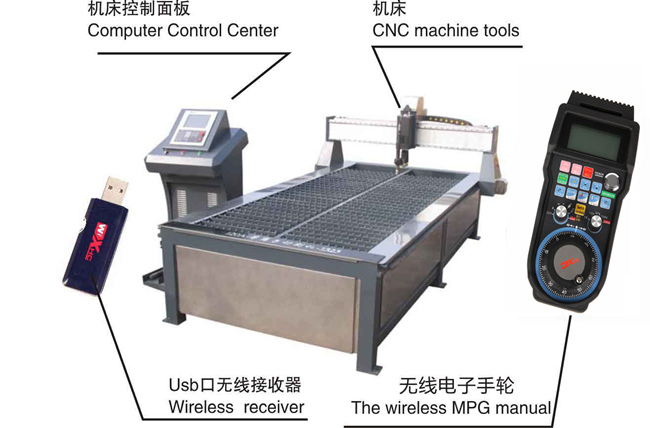

3、Product Overview
.jpg)
4、Key feature
1 .Auto Frequency Hopping When Noise.
Frequency band:433Mhz,ISM ,the output power up to10DB，High receiver sensitivity -98DB.
32 hopping channels，the channel frequency gap is 1Mhz.
the transmission is encrypted， auto build communication network and pair. auto hopping when noise.
32 sets of wireless MPG could be used at the same time in one room.

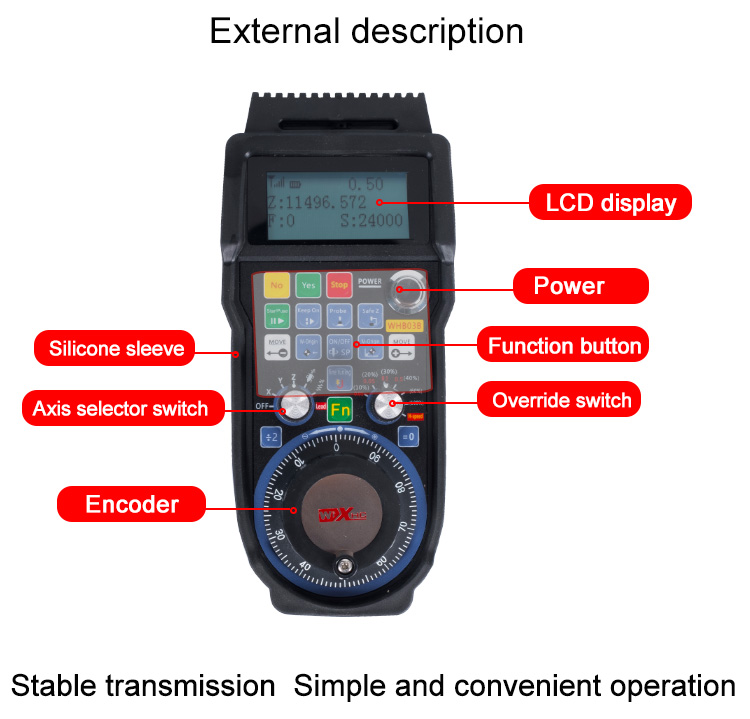

2 Axis/Step band switch
To choose X/Y/Z/A/B/C axis or close all axis by axis switch,to choose jog step by step switch.
3.Reliable and Stable Performance
The wheel gear of aluminium MPG is clear,the position is accurate
The ABS/PC MPG is anti-impact and heat-resistant.
4.Display the X Y Z axis work and machine coordinate data.
The lcd display data with background light.
Display the current work state of the cnc system.
5、General Characteristics
| Parameter | Description |
| Frequency bands | ISM，433MHZ |
| Supply voltage | 2 AA batteries |
| Wireless transmission distance | 40 meter |
| MPG Encoder | 100PPR |
| Function Key | 13 Keys |
| RF TX power | 10DB |
| Receiver sensitivity | -98DB |
| LCD | 128*68 Dot LCD with background |
| Material | ABS、PC、aluminium |
6、Attachments
| WHB03B Wireless MPG | 1piece |
| Handle | 1piece |
| USB receiver | 1piece |
| Hook | 1piece |
| Package box size | 220*168*60mm |
| Weight | 0.65KG |
More detail introduction,please walk to download center
