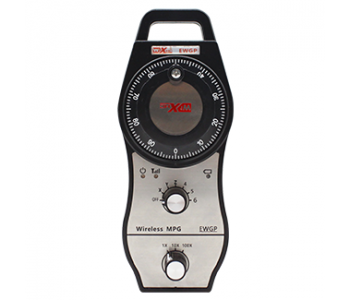

1.more concise design, smaller handwheel and receiving box
2.Wireless communication frequency band ISM 433MHZ

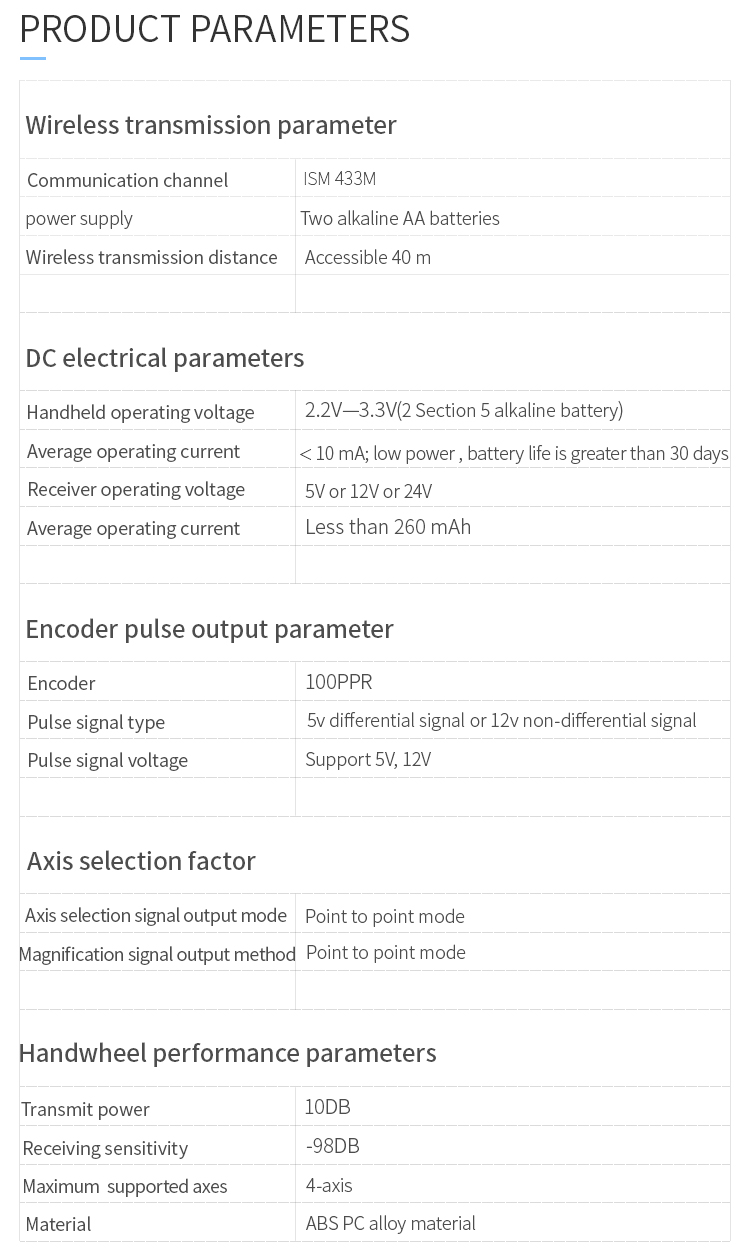

3.10DBM transmit power, -98DBM receive sensitivity, barrier-free distance of 40 meters

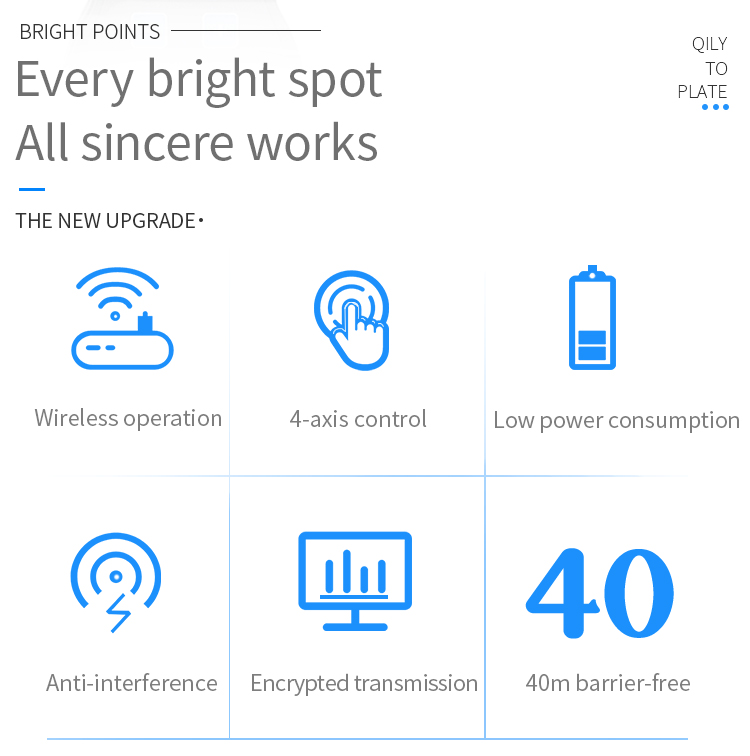

4.Anti-interference design, stable and reliable, using 32 sets in the same space, without affecting each other
5.Low power consumption design, 2 AA batteries, normal use for 30 days

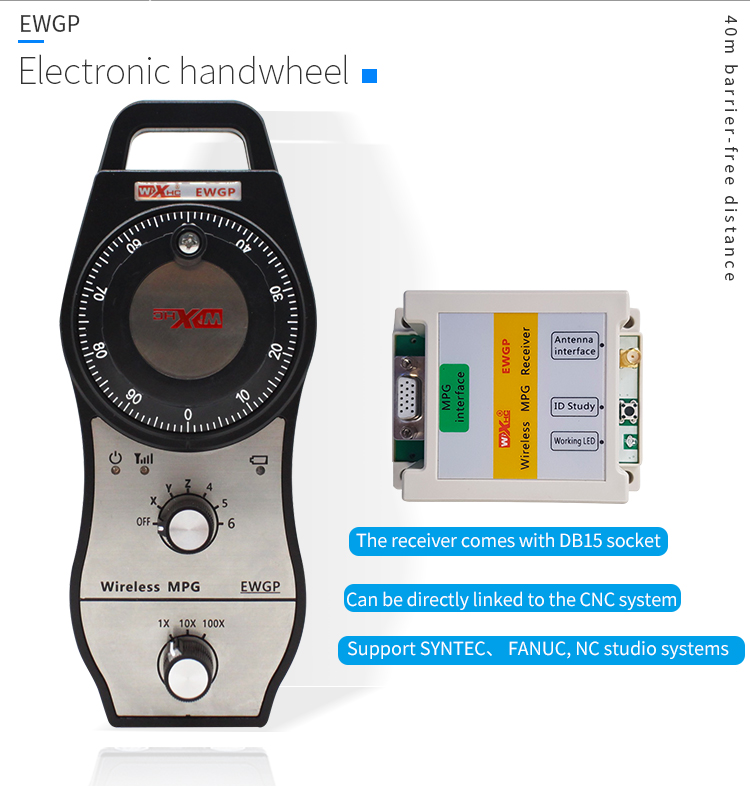

6.axis selection switch function, magnification selection switch function
7.The axis selector switch supports up to 4 axes, and the override selector switch supports 3 gears

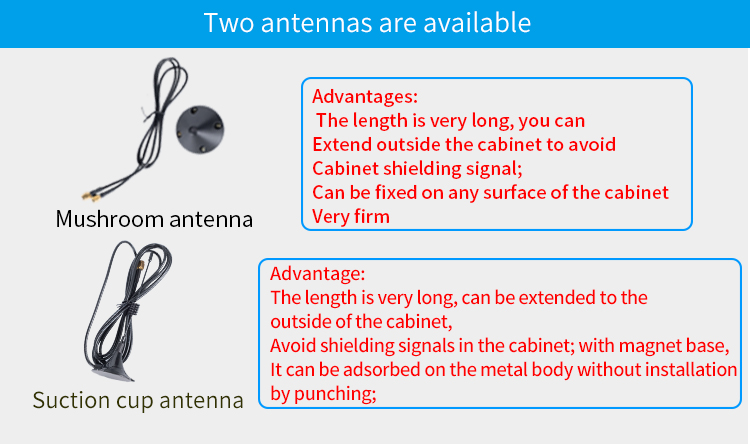

8.Support receiver external antenna, perfectly solve the problem of shielded wireless signal in metal cabinet

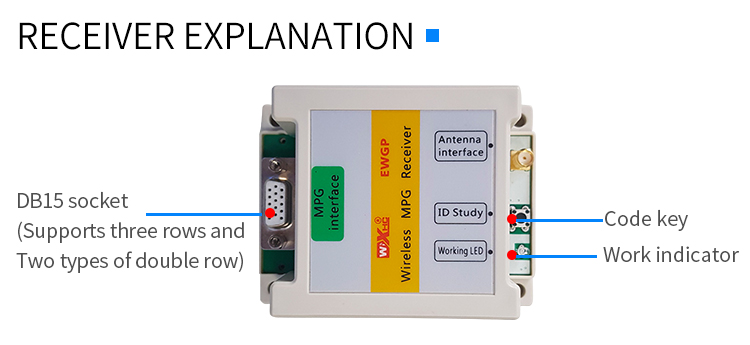

9.The receiver supports three rows of DB15 plugs and two rows of DB15 plugs, with a standard 1.5 m DB15 cable
[working principle]
Using wireless transmission technology, easy to operate, eliminating the traditional spring wire connection, reducing the cable failurerate, and avoiding the dragging of the cable to get oily
[Application principle]：
Instead of the traditional wired electronic handwheel of CNC machine tools, it solves the shortcomings of the cumbersome and inconvenient connection cable of the wired electronic handwheel, and the limited operating distance. It adopts industrial-grade wireless communication technology, ergonomic design, and has a 40-meter distance remote wireless Remote control function, can manually guide the machine tool, precise positioning movement, emergency stop operation, etc.;
[Industry Case]:
1、Perfectly replace all functions of traditional wired handwheel
2、Support all CNC system brands with handwheel interface

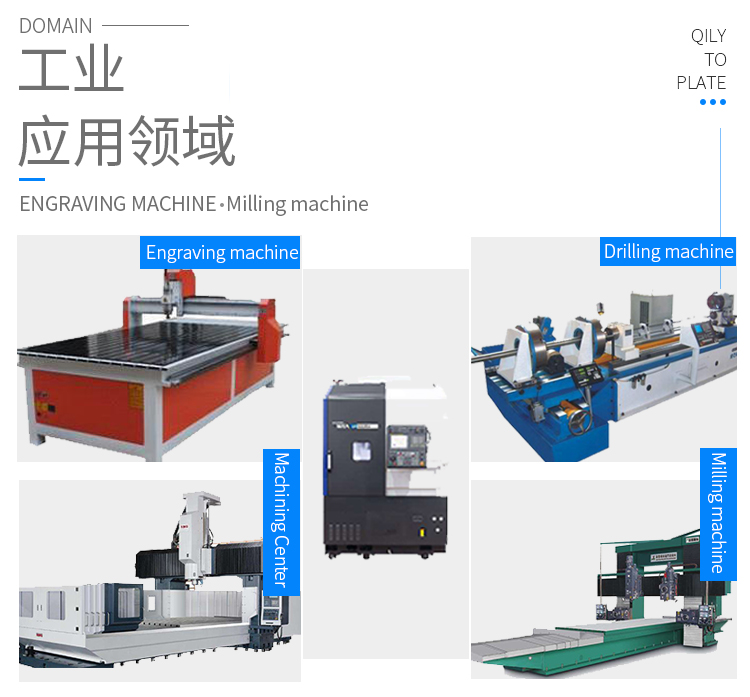

3、Has been widely used in: · CNC machining center · CNC Lathe · CNC milling machine · Large gantry machine tool · CNC engraving machine · CNC laser cutting machine and other equipment
[Applicable system]:
Fanuc,Siemens,Mitsubishi,Fagor,GSK,Syntec,etc.
