They could be used in Germen （SIEMENS）、Japanese（MITSUBISHI)、France（FANUC）、Spain（FAGOR）、France NUM、Taiwan LNC、SYNTEC CNC system.

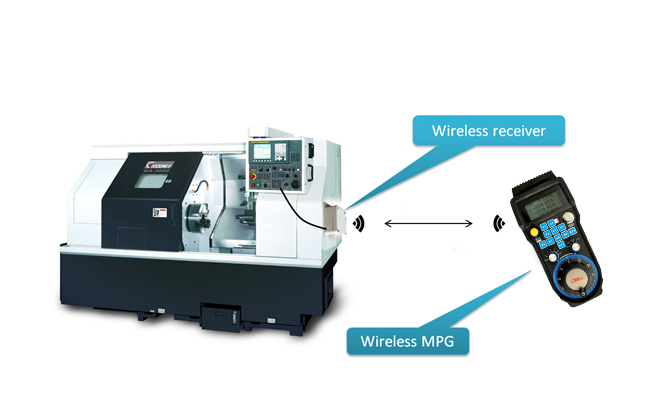

2、Application circut
.jpg)

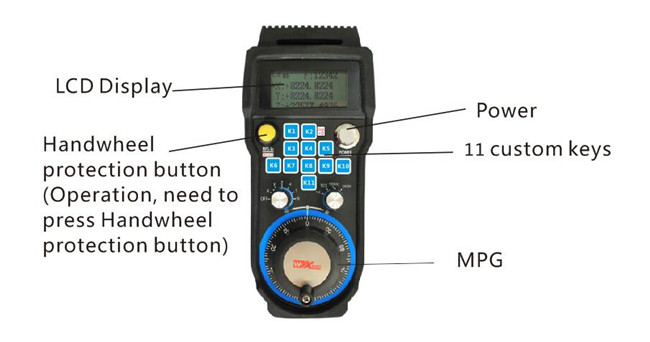

3、Product Overview
.jpg)
4、Key feature
1.Support 11 custom button output, the corresponding receiver 11 photoMOS relay output
2.Support LCD display coordinates clear.
3.Wireless ISM frequency band, 433 MHZ,10DB Transmit power, -98DB Receiver sensitivity, interference free within 50m
4.Anti-interference design, stable and reliable, up to 32 sets of wireless remote control MPG in use simitaneously
5.Low-power design, 2 AA batteries lasting 30 days in normal operation Having a shaft selection function, magnification selection function
6.With LCD display cleared, in function, LCD can display X, Y, Z, 4,5,6 axis coordinate value increment
7.The alloy is stable and reliable, the performance of the encoder, feel good, clear teeth
5、General Characteristic
| Parameter | Description |
| Frequency bands | ISM,433MHZ |
| Frequency bands | 2 AA batteries |
| Wireless transmission distance | 40 meter |
| MPG Encoder | 100PPR |
| Output power | 10DB |
| Receiver sensitivity | -98DB |
| Maximum axis | 6 axis |
| Material | ABS、PC、 aluminium |
6、Attachments
| CWGP-K11 Wireless MPG | 1piece |
| Handle | 1 piece |
| Wireless Receiver | 1 piece |
| Hook | 1 piece |
| CWGP-K11 Manual | 1 book |
| Package box size | 265*135*78mm |
| Weight | 0.87kg |
More detail introduction,please walk to download center
