They could be used in Germen （SIEMENS）、Japanese（MITSUBISHI)、France（FANUC）、Spain（FAGOR）、France NUM、Taiwan LNC、SYNTEC CNC system.

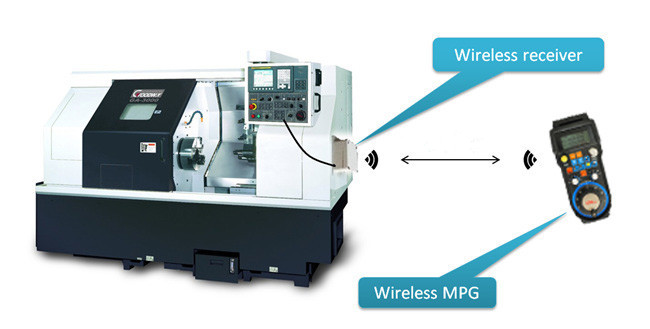

2、Application circut
.jpg)

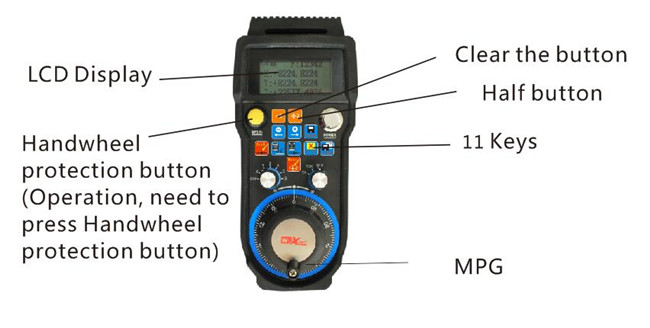

3、Product Overview
4、Key feature
1 Support five point touch number automatically find the positive, can calculate,the workpiece offset angle, calculate the workpiece center point coordinates
2 Support save and return to the coordinates of the center point of workpiece
3 Support the button control shaft moving fast,Automatic go to ½ coordinate
4 Wireless ISM frequency band, 433 MHZ,10DB Transmit power, -98DB Receiver ,sensitivity, interference free within 50m
5 Anti-interference design, stable and reliable, up to 32 sets of wireless remote,control MPG in use simitaneously
6 Low-power design, 2 AA batteries lasting 30 days in normal operation,Having a shaft selection function, magnification selection function
7 With LCD display cleared, in function, LCD can display X, Y, Z, 4,5,6 axis coordinate value increment
8 The alloy is stable and reliable, the performance of the encoder, feel good, clear teeth
5、General Characteristics
| Parameter | Description |
| Frequency bands | ISM，433MHZ |
| Supply voltage | 2 AA batteries |
| Wireless transmission distance | 40 meter |
| MPG Encoder | 100PPR |
| Function Key | 11 Keys |
| Output power | 10DB |
| Receiver sensitivity | -98DB |
| Maximum axis | 5axis |
| LCD | 128*68 dot,with background light |
| Material | ABS、PC、 Aluminium |
、 6、Attachments
| CWGP0X-F10 Wireless MPG | 1 piece |
| Handle | 1 piece |
| Wireless receiver | 1 piece |
| CWGP0X-F10 manual | 1 book |
| Package box size | 235*225*85mm |
| Weight | 0.9kg |
More detail introduction,please walk to download center
