Key feature
1 Auto Frequency Hopping When Noise.
Frequency band:433Mhz,ISM ,the output power up to10DB，High receiver sensitivity -98DB.
32 hopping channels，the channel frequency gap is 1Mhz.

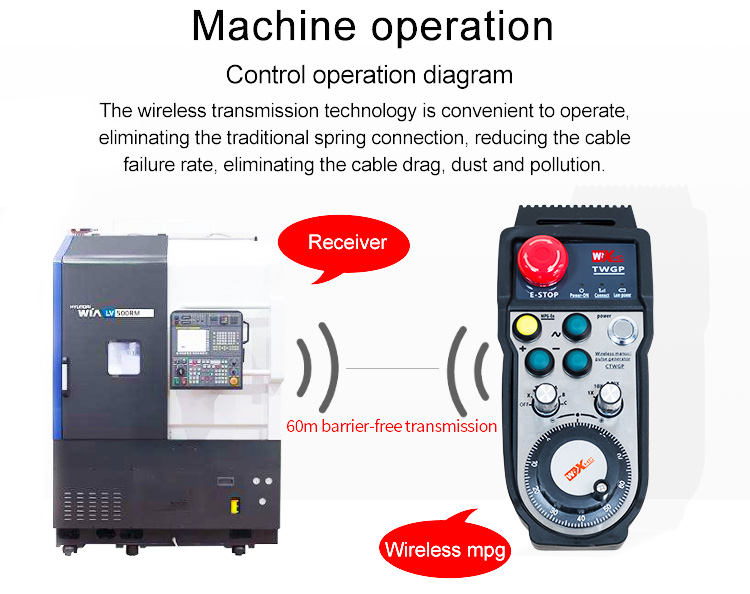

2.4G wireless transmission，the transmission is encrypted， auto build communication network and pair. auto hopping when noise.
32 sets of wireless MPG could be used at the same time in one room.
2 Estop Function
To improve work effiency and assure safety.

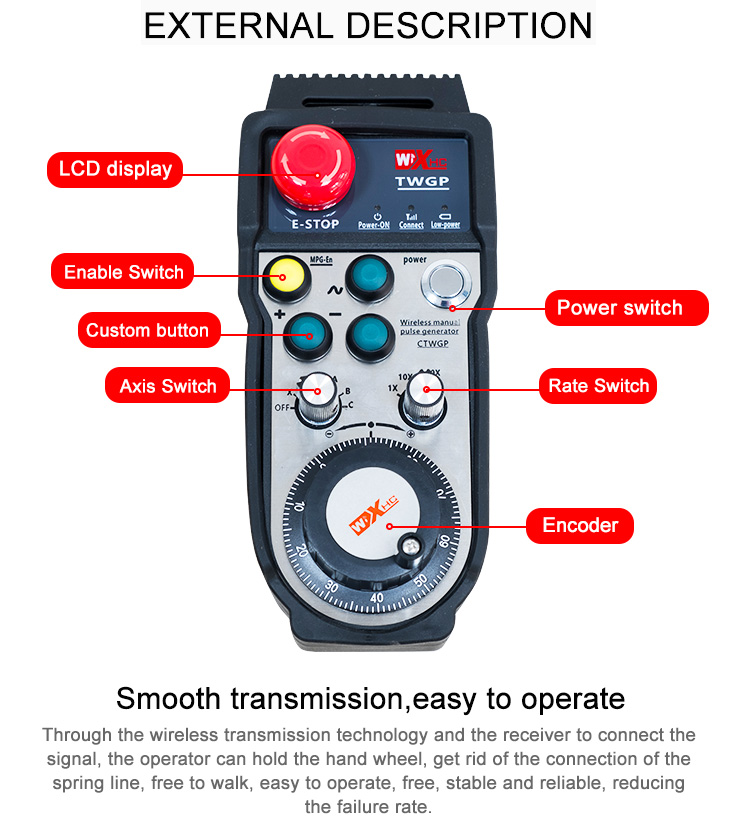

3 Axis/Step band switch
To choose X/Y/Z/A/B/C axis or close all axis by axis switch,to choose jog step by step switch.
4 Reliable and Stable Performance
Low power feature，the life is longer than 2 months with 2 AA batteries
The wheel gear of aluminium MPG is clear,the position is accurate
The ABS MPG is anti-impact and heat-resistant.
General Characteristics
| Parameter | Description |
| Frequency bands | ISM，433MHZ |
| Supply voltage | 2 AA batteries |
| Wireless transmission distance | 40 meter |
| MPG Encoder | 100PPR |
| Function Key | 5 Keys |
| Output power | 10DB |
| Receiver sensitivity | -98DB |
| Maximum axis | 6 axis |
| Material | ABS、PC、 aluminium |
| CTWGP Wireless MPG | 1 piece |
| Handle | 1 piece |
| Wireless receiver | 1 piece |
| antenna | 1 piece |
| WGP manual | 1 book |
| Package box size | 290*205*63mm |
| Weight | 0.9kg |
More detail introduction,please walk to download center
