They could be used in Germen （SIEMENS）、Japanese（MITSUBISHI)、France（FANUC）、Spain（FAGOR）、France NUM、Taiwan LNC、SYNTEC CNC system.

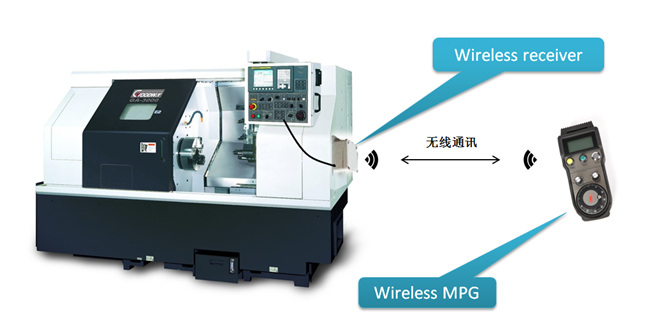

2、Application circut
_04.jpg)

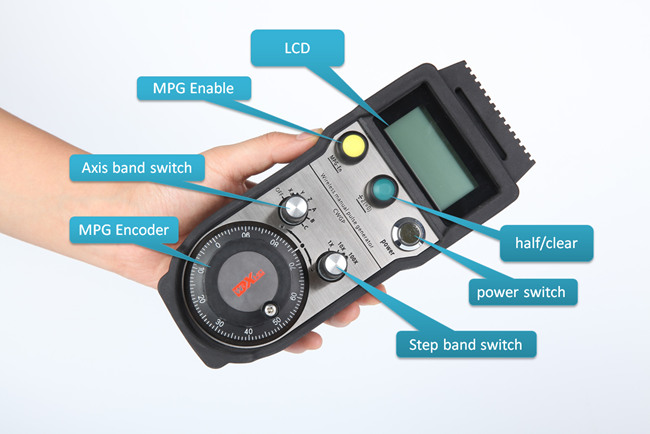

3、Product Overview
4、Key feature
1 .Auto Frequency Hopping When Noise.
Frequency band:433Mhz,ISM ,the output power up to10DB，High receiver sensitivity -98DB.
32 hopping channels，the channel frequency gap is 1Mhz.
the transmission is encrypted， auto build communication network and pair. auto hopping when noise.
2 with LCD Display
Display the increased work coordinate,the current axis and step position
3 Axis/Step band switch
To choose X/Y/Z/A/B/C axis or close all axis by axis switch,to choose jog step by step switch.
4 Reliable and Stable Performance
Low power feature，the life is longer than 2 months with 2 AA batteries
The wheel gear of aluminium MPG is clear,the position is accurate
The ABS MPG is anti-impact and heat-resistant.
5、General Characteristics
| Parameter | Description |
| Frequency bands | ISM，433MHZ |
| Supply voltage | 2 AA batteries |
| Wireless transmission distance | 40 meter |
| MPG Encoder | 100PPR |
| Function Key | 2 Keys |
| Output power | 10DB |
| Receiver sensitivity | -98DB |
| Maximum axis | 5axis |
| LCD | 128*68 dot,with background light |
| Material | ABS、PC、 Aluminium |
、 6、Attachments
| CWGP Wireless MPG | 1 piece |
| Handle | 1 piece |
| Wireless receiver | 1 piece |
| WGP manual | 1 book |
| Package box size | 235*225*85mm |
| Weight | 0.9kg |
More detail introduction,please walk to download center
