1、Application
LHB04B-4:4 axis,wired handwheel
LHB04B-6:6 axis,wired handwheel

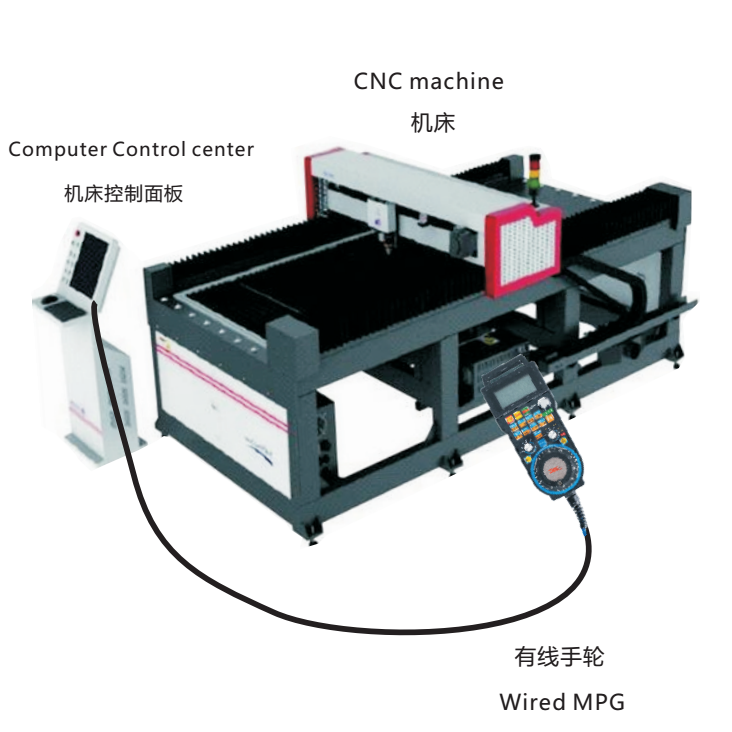

2、Application circut

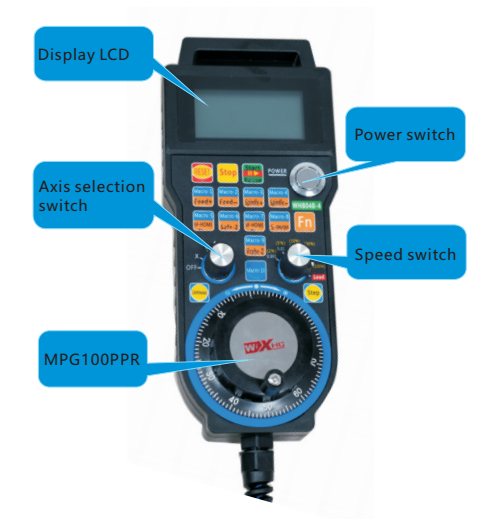

3、Product Overview
.jpg)
4、Key feature
Connected with a shielded 5meters USB cable,signal transmission is stable and reliable.
100PPR manual pulse generator,support 10 macro function button

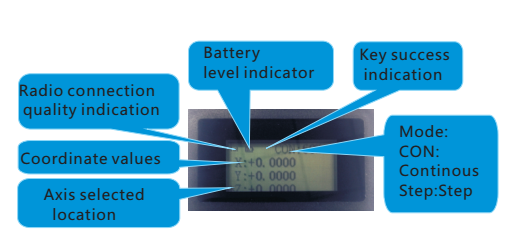

LCD Dispiay:machine coordinates and workpiece coordinates X,Y,Z,A,B,C-axis
LCD Display:Spindle speed value,processig feed rate value
5、General Characteristics
| MPG Encoder | 100PPR |
| USB cable | 5m |
| Function Key |
18 Keys
|
| Maximum axis | 6 axis |
| LCD | 128*68 Dot LCD with background |
| Material | ABS、PC、aluminium |
6、Attachments
| LHB04B Wireless MPG | 1piece |
| Handle | 1piece |
| USB receiver | 1piece |
| Driver disk | 1张 |
| Guarantee CARD | 1 paper |
| WHB03L user manual | 1 book |
| Package box size | 265*123*75mm |
| Weight | 0.75KG |
