无线对刀仪对刀精度0.01mm；
适用于维宏系统、德国西门子、日本三菱、法那科、台湾宝元、新代、华中数控等等系统

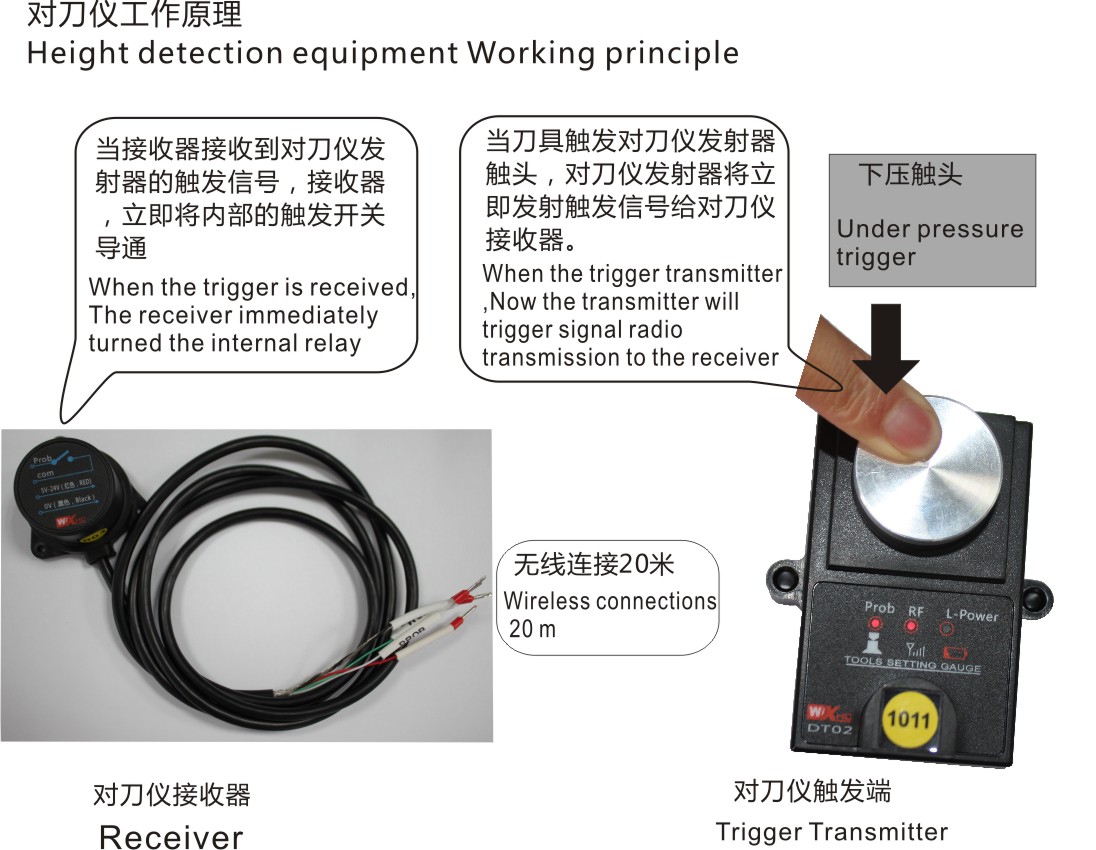

一. 应用 Application
低功耗无线对刀仪,实用于各种CNC加工中心.
low-power wireless tool setting gaguge, applications operating in all kinds of machine cnc center.
.jpg)
二． 操作使用步骤说明 Operation Instruction
1．将接收器连接到系统，如下说明：（接收器）Connect the receiver to the cnc system
.jpg)
接收器信号说明The receiver pin configuration :
.jpg)
说明：description
1、Prob为内部继电器输出的2个脚，平时Prob处于断开状态，当对刀触发的时候，Prob闭合。
Prob is the electric relay output normal open switch,which will be closed when the probe signal is triggered.
2、给接收器供电：接收器支持5V到24V的电压输入。
当接收器有电压输入后，接收器开始工作，接收器的工作指示灯闪烁。
Power on the receiver.please make sure that the input power is 5v-24v DC. The work led flash to indicate power on ok.
3、给对刀器安装上2节AAA电池。
拆开对刀器底盖------安装上2节AAA电池（注意电池正负方向）------装上对刀器底盖
Install the two AAA batteries to the terminal device.
Open the the battery door->install the 2 AAA.(Attention to The battery positive and negative direction )->close the battery door.
.jpg)
4、轻压下对刀仪，对刀指示灯亮；同时无线连接指示灯亮；对刀仪将对刀信号无线传递给接收器，接收器对刀指示灯亮，对刀开关处于闭合状态；完成对刀。
To Touch the bulge of the tool setting gauge device until the probe led and the RF Led light. the probe signal will be transferred to the receiver,the receiver will trigger the probe switch to close.
三、电气参数 Electrical specifications
3．1：接收器（The receiver）
．工作电压：支持宽电压输入：直流：5V到24V
Work voltage:5v~24DC
．工作电流：平均电流小于：20Ma
Current consumption: type 20ma
．无线使用距离：20米
Wireless distance:20 meter
．内部继电器输出：支持250V/50mA负载;常开型;对刀触发,继电器闭合.
The relay normal open contacts output: support maximum 250V/50ma load.
3．2：对刀器（The tool setting gauge）
．工作电压：2节AAA电池，直流2.4V到3.6V
Work voltage:2 AAA batteries,2.4V~3.6V DC
．工作电流：平均电流小于20uA；2节AAA电池能正常使用6个月
Current consumption: type 20uA.To work continuously more than 6 months
．无线使用距离：20米
Wireless distance:20 meter
．对刀重复精确度：0.01毫米
Probe precision:0.01mm
低压警告：当对刀器电池电压低于2.4V，提示更换电池。
Low power warning:please exchange the batteries when low power led light
